801 - Pump Casing / 812 - Steel Diffuser

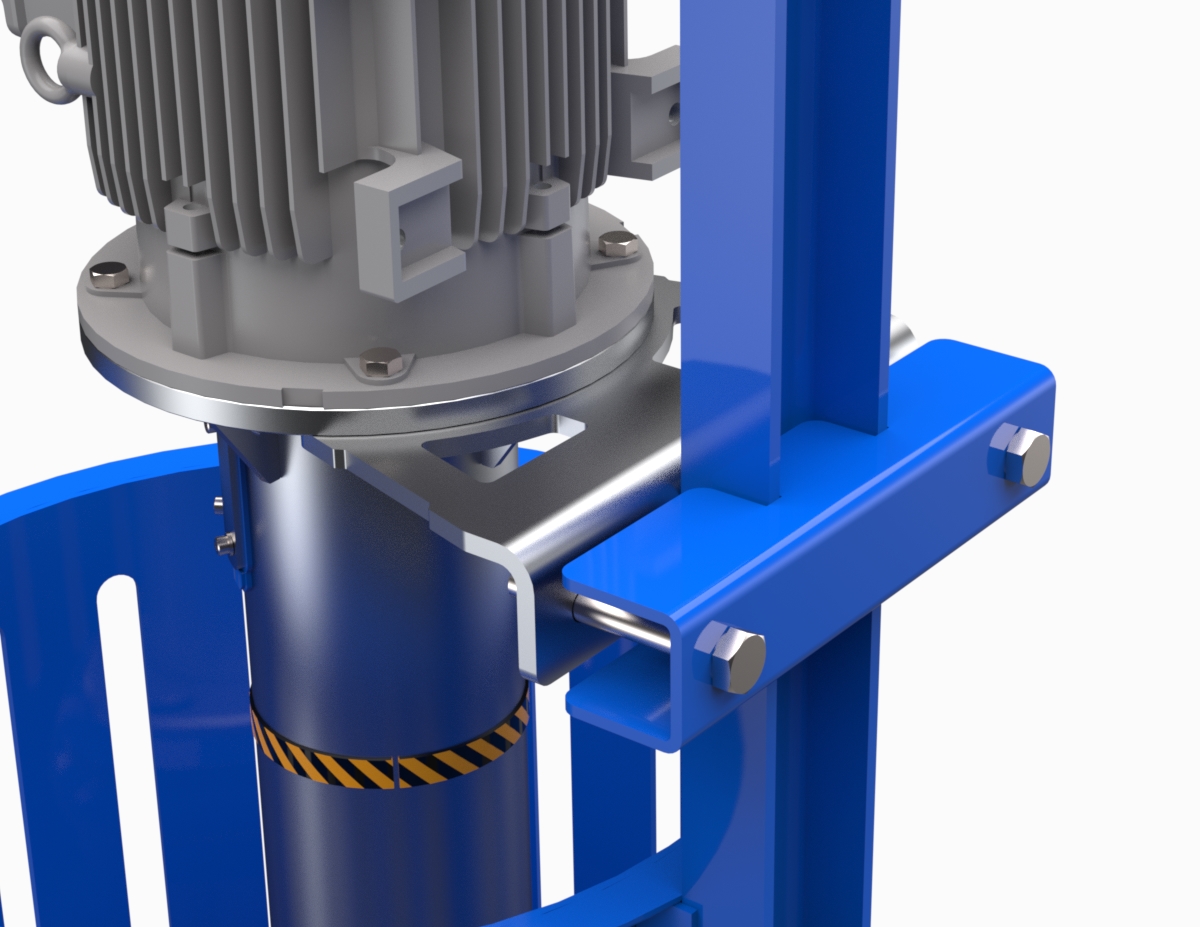

823 - Mounting Bracket

828 - Suction Extension / 828 - Suction Extension Gasket

814 - Strainer

832 - Pump Foot Piece

806 - Access Cover / 807 - Access Cover Gasket

827 - VS50 Coupling

820 - Bearing Housing


Â
   Â
817 - Lock Nut
   Â

816 - Tab Washer
   Â

821 - Bearing Lock Plate
   Â

808 - Bearing
   Â

822 - O'ring
   Â

805 - Shaft
   Â

818 - IKO Sleeve
  Â

824 - Shaft Sleeve
  Â

813 - Diffuser Disc
  Â

809 - Impeller Shim
  Â

802 - Impeller
  Â

810 - Impeller Washer
  Â

826 - Impeller Cap
Hover over points of interest
Balz® Pump Range
800 Series VS50
- Accidental phase reversal cannot harm the pump or dislodge the impeller.
- High chrome, stainless steel and urethane wear resistance part available to ensure excellent results for arduous pumping conditions.
- Bottom pump intake.
- No bearing maintenance required. Bearings are lubricated and sealed for life.

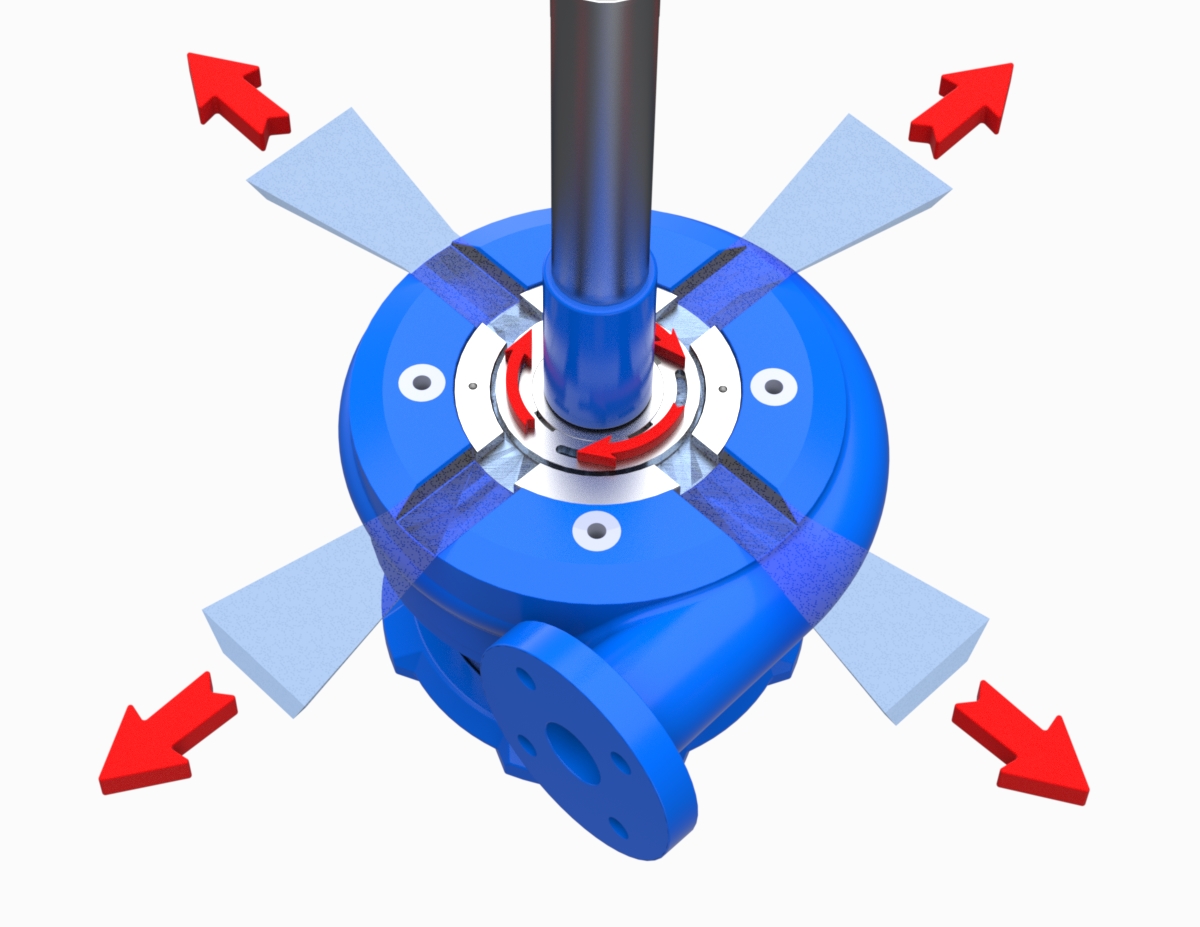

- Patented sealing arrangement effectively prevents media from reaching the bearings during normal operation and if correctly installed.
- Can pump solids up to 15mm and density of up to 1.3.
Applicable Industries:
- Minerals processing
- General dewatering applications
- Coal preparation
- Chemical processing
- Power generation
- Agriculture
- General tank applications

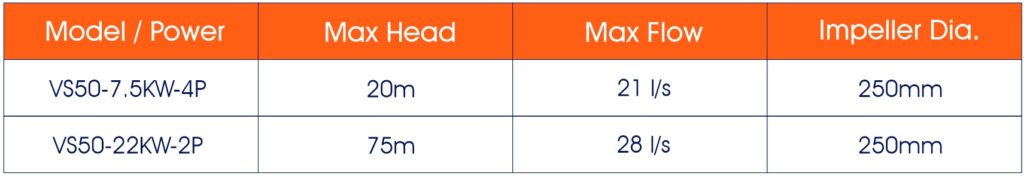

Select pump size and click to download datasheet:

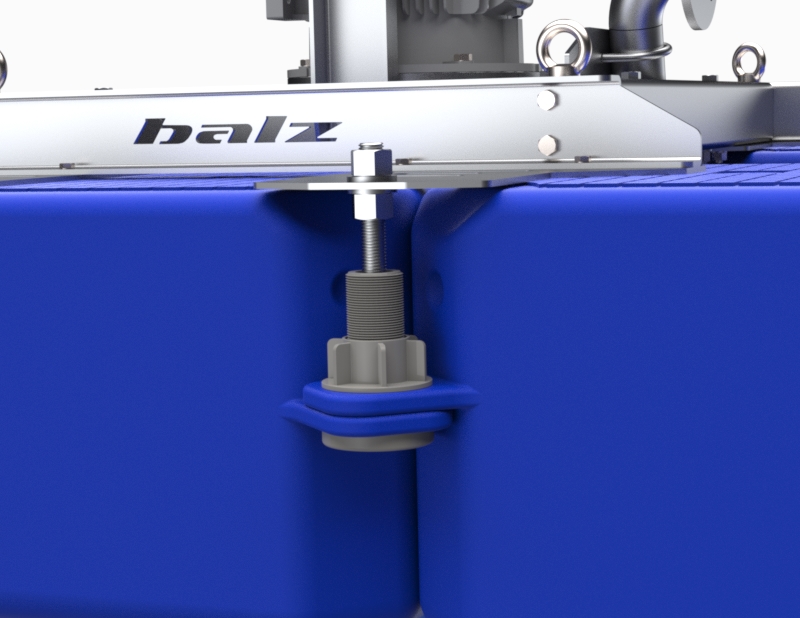

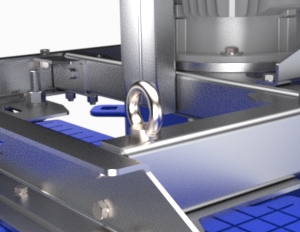

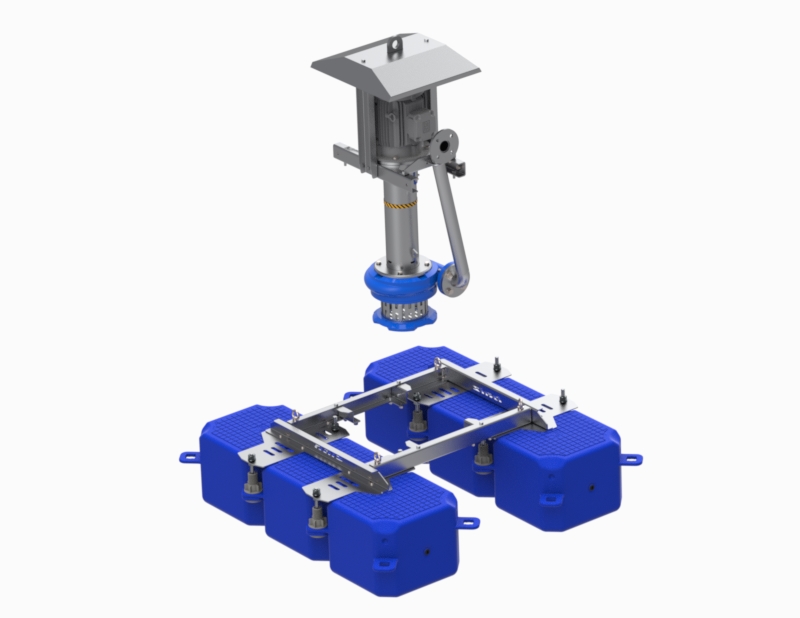

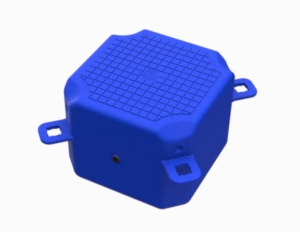

Balz® Float Arrangement - Specially Designed for our VS50-7.5KW
BALZ® ORIGINAL
VS 50 Accessories
Balz® Motor Protection Sleeve

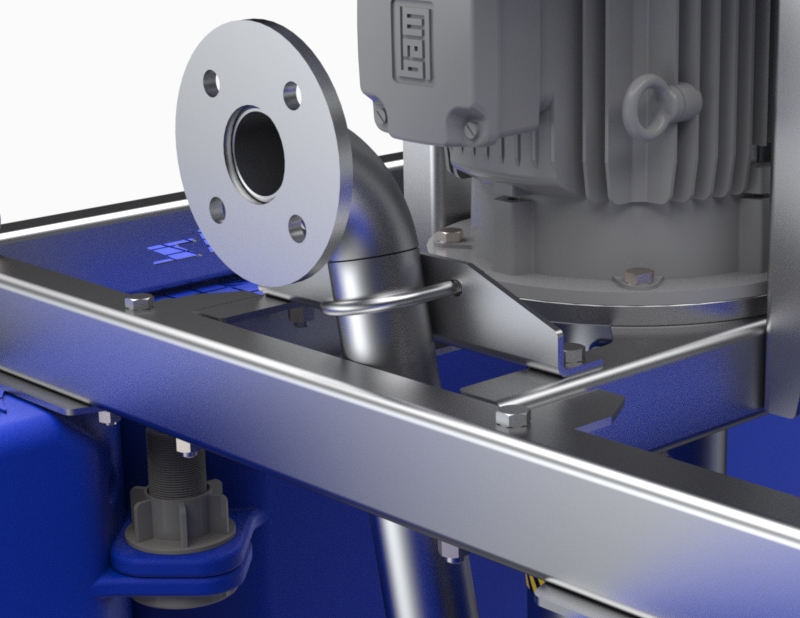

Balz® Outlet Extension
Balz® Level Probe
Balz® Lifting Bracket
Balz® Canopy
Balz® Starter Panel
Balz® VS50 Sump
