Balz® Pump Range

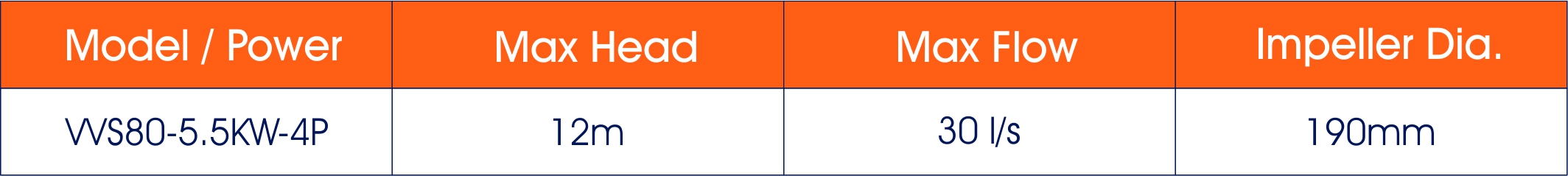

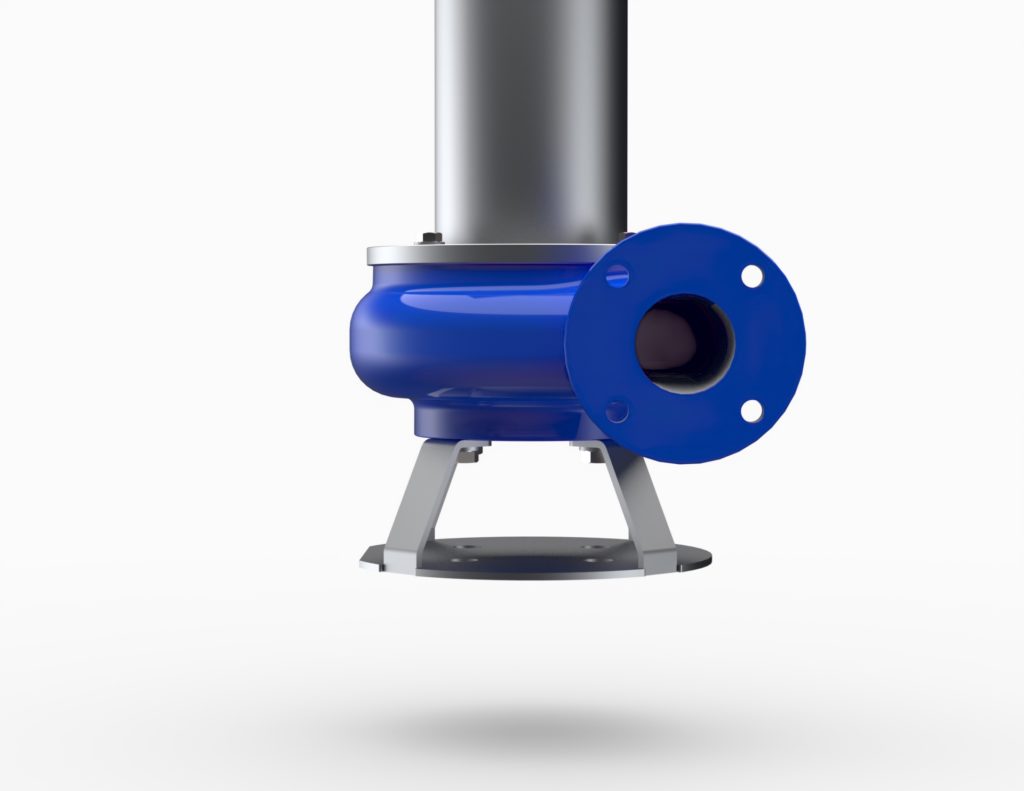

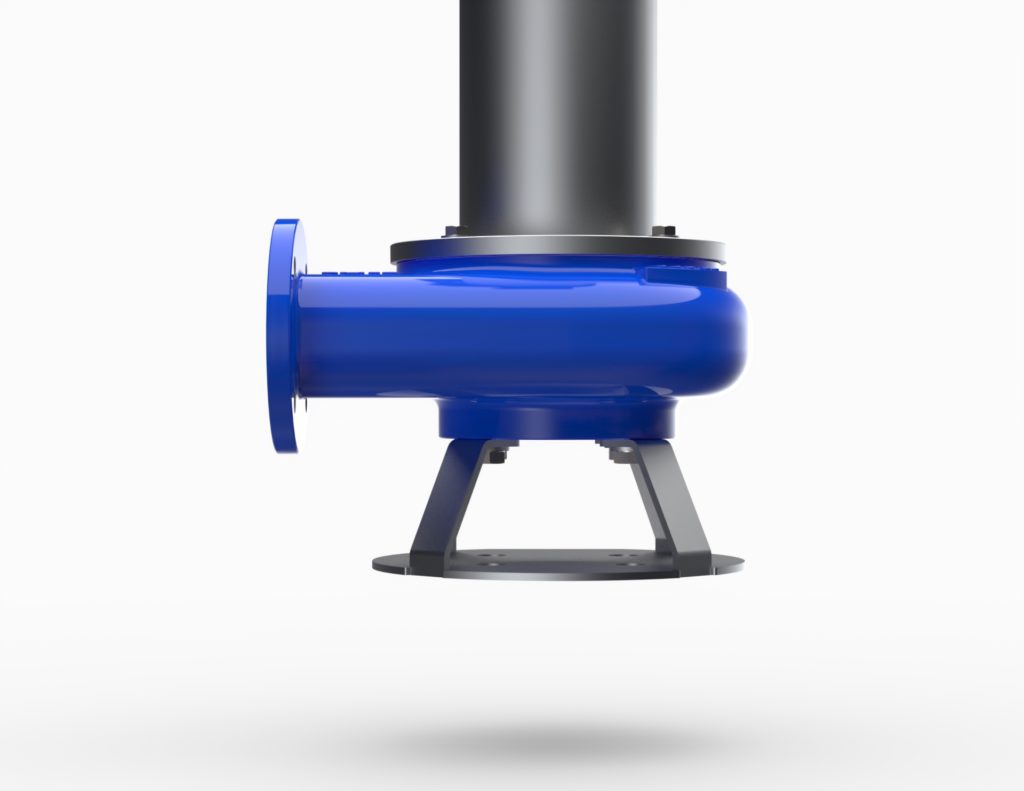

300 Series VVS80 Vortex
- The impeller is located in a recess in the pump casing and not in the water passage. The rotating motion of the impeller causes a vortex which allows for the free flow of larger solids and more fibrous materials.
- Accidental phase reversal cannot harm the pump or dislodge the impeller.
- No bearing maintenance required.
- Maximum pump immersion depth 800mm.
- Pump can also be supplied as a portable unit.
- Non-clogging urethane impeller.
- Can run dry indefinitely and rotates at 4 pole speed.
- Bottom suction. Suction pipes of varying lengths can be fitted to the inlet of the pump casing to extend the immersion depth.
- Direct driven rigid coupling design.
- The 300 series makes use of the unique patented bubble sealing system.
Applicable Industries:
- Minerals processing
- Coal preparation
- Chemical processing
- Carbon transfer
- Effluent handling
- Pulp and paper
- Sand and gravel
- Power generation
- Agriculture
- Abattoir process
- General tank applications
Select pump and click to download datasheet:
BALZ® ORIGINAL
VVS80 Accessories
Balz® Motor Protection Sleeve
Balz® Outlet Extension
Balz® Level Probe
Balz® Suction Extension Pipe
Balz® Canopy
Balz® Starter Panel
Balz® Square Sump
Balz® VVS80 Transport Cradle
