Balz® Pump Range
100 Series VS100 M-Type Extension

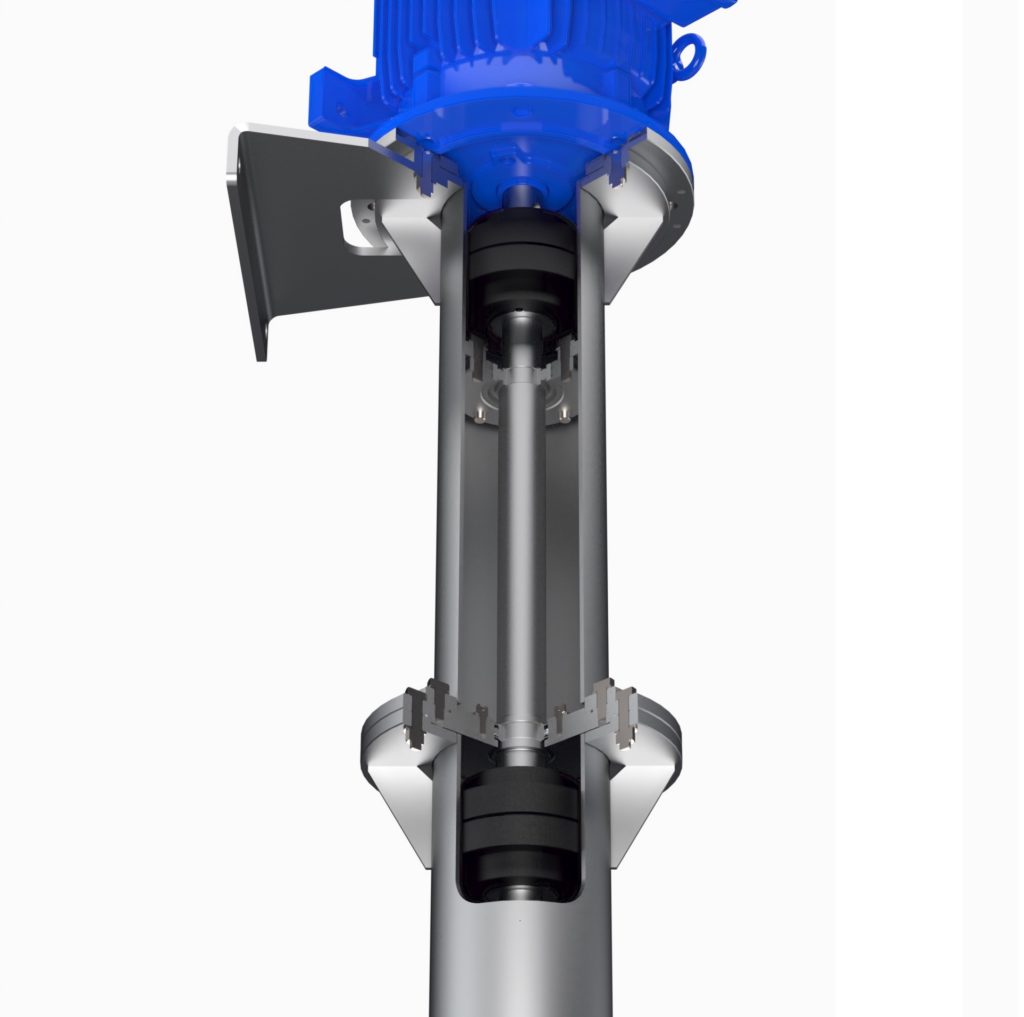

- M-type design pumps have a modular radial design that allows it to be extended for deeper immersion to meet customers requirements.
- Ideally suited for deep sump applications.
- Standard M-type have a 800mm immersion depth.
- Extended version immersion depth increase by 600mm with every stage addition.
- Pump is fitted with heavy duty bearings and oil filled mechanical seal chamber.
- Opposing outlets balances the thrust load.
- Accidental phase reversal cannot harm the pump or dislodge the impeller.
- Pump intake is above the floor of the sump.
- No Bearing Maintenance required.
- Can pump solids up to 15mm and density of up to 1.3.
Applicable Industries:
- Minerals processing
- General dewatering applications
- Coal preparation
- Chemical processing
- Power generation
- Agriculture
- General tank applications
Select pump size and click to download datasheet:
BALZ® ORIGINAL
VS100 M-Type Extension Accessories
Balz® Motor Protection Sleeve
Balz® Outlet Extension
Balz® Level Probe
Balz® Lifting Bracket
Balz® Canopy
Balz® Starter Panel
Balz® Strainer Box
Balz® Universal Sump
